Synthetic medium

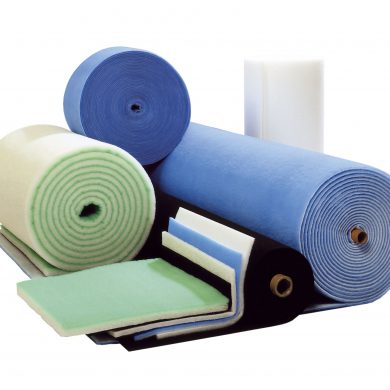

Synthetic medium are used as pre filters for air treatment systems as well as spray-painting booths. Synthetic filter media are supplied either on a roll or in pre-cut sheets.
Available in ISO Coarse, 50%, ISO Coarse 70%, ISO Coarse 80%.

Filter class according to ISO 16890
ISO Coarse
Maximum final pressure drop
250Pa
home ventilation

HVAC

industry

Industry

Specifications

  • Medium : Polyester
  • Maximum temperature : 70°C
  • Maximum relative humidity : 90%

Installation

  • Ensure that the filter medium is fitted correctly (fine side – dirty air side)
  • Ensure that the medium is installed flat
  • Filter medium should be properly secured to prevent it from becoming dislodged or possibly leaking during its service life
  • Filter installation records; note the date, type and initial resistance.
