Na panel filter

NA Panel Filter

NA Panel Filter is a pleated filter, assembled within a galvanized steel frame.
Ranging from ISO Coarse 30%, ISO Coarse 50%, ISO Coarse 60% in compliance with ISO 16890.

  • Frame: Galvanised steel
  • Medium: Synthetic
  • Gasket: Optional Neoprene
Ask for a quoteCall me back
Filter class according to ISO 16890
ISO Coarse
Maximum final pressure drop
250Pa
home ventilation

HVAC

industry

Industry

Specifications

  • Frame: Galvanised steel
  • Medium: Synthetic
  • Gasket: Optional Neoprene
  • Maximum temperature: 70°C
  • Maximum relative humidity: 90%

Installation

  • Make sure that the filter is fitted correctly: Suction side – clean air side
  • Filter should be correctly installed: no leaks
  • Gaskets should be completely undamaged
  • Filter should be secured at four points
  • Ensure that the filter medium is not folded double
  • Take care to avoid damaging the filter during installation
  • System should be run in for several hours to achieve the desired result
  • Filter installation records; note the date, type and initial resistance.

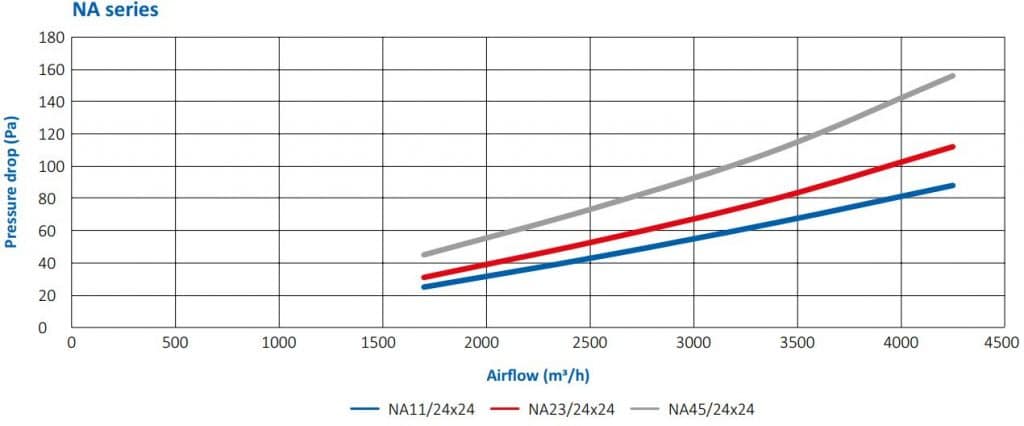

Pressure drop NA

Pressure drop
