Webshop
filtre compact CS98

CS98 serie compact filter

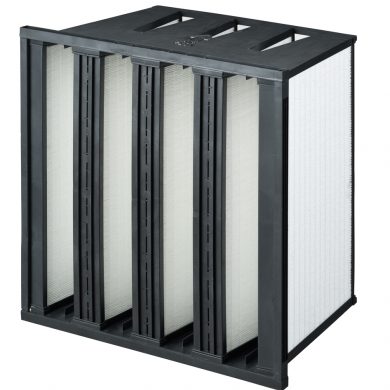

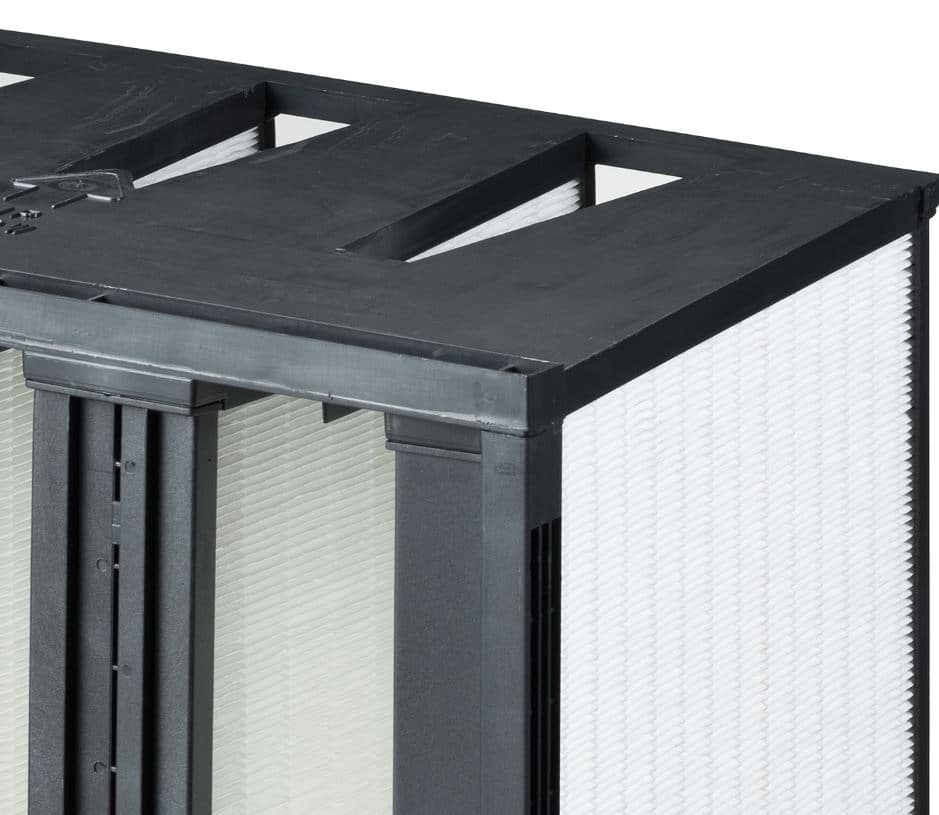

CS98 series compact filter is a mini-pleat filter assembled on a polyurethane frame. In addition, this type of air filter is resistant to temperatures up to 65°C. The glass fiber filter medium is made with a “wet-laid paper technique” that guarantees high dust retention effectiveness and constant filter efficiency. The technology guarantees sustainability.

  • Frame: Polyurethane
  • Medium: Fiberglass
  • Gasket:  Optional continuous poured gasket

AFPRO Filters BV participates in the ECP programme for Air filters (FIL). Check ongoing validity of certificate: www.eurovent-certification.com

Ask a quoteCall back
Filterclass according
to ISO 16890
ePM1
Energy label
B
Maximum final
presssure drop
450 Pa

HVAC

Industry

cleanroom

Cleanroom

Specifications

  • Frame : Polyurethane
  • Medium :  Fiber glass
  • Gasket:  Optional continuous poured gasket
  • Maximum temperature :  65°C
  • Maximum relative humidity :  90%

Installation

  • Make sure that the filter is fitted correctly: Suction side – clean air side
  • Filter should be correctly installed: no leaks
  • Gaskets should be completely undamaged
  • Filter should be secured at four points
  • Ensure that the filter medium is not folded double
  • Take care to avoid damaging the filter during installation
  • System should be run in for several hours to achieve the desired result
  • Keep filter installation records; note the date, type and initial presure drop

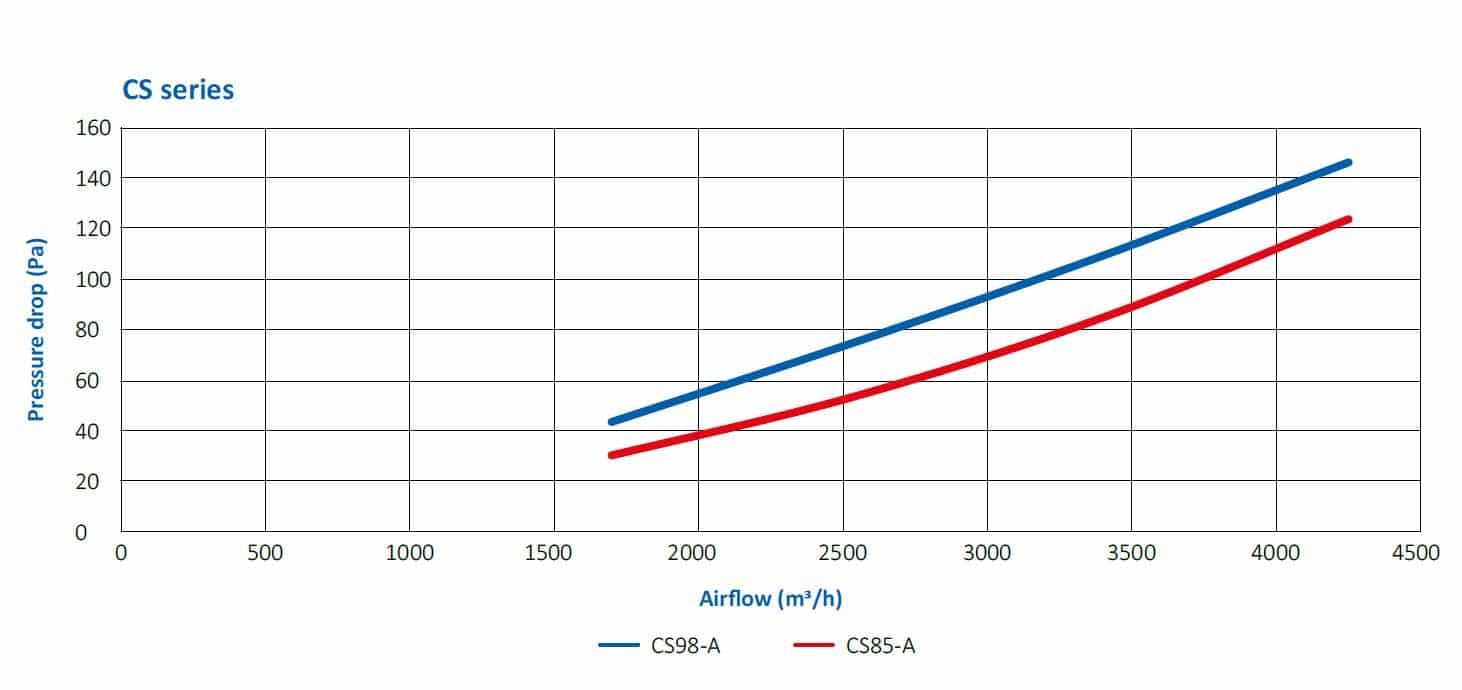

Pressure drop curve CS85 CS98

Advantages

  • Lower air resistance
  • Ideal for small construction space

Suggestions
