Bag filters holding frames

bag filters holding frames

Construction

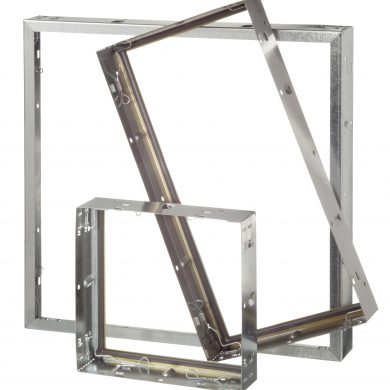

The bag filters holding frames  are made of either galvanized or stainless steel 304 or 316. On request, an epoxy coating can be applied to frames as well. High quality steel is used in manufacturing the frames to ensure ample rigidity. Furthermore, the construction design pays consideration to optimum frame stability and ease of installation.

Application

These holding frames for bag filters are widely used in air treatment cabinets and air inlet systems for equipment such as gas turbines. The frames have standard dimensions and are a good replacement for the used holding frames removed during the renovation of air treatment cabinets.

Specifications

Application: HVAC, industrial
Frame: Galvanized steel or stainless steel (RVS)
Gasket: Continuous poured gasket
Maximum temperature: 70°C
Comments: When 3 or more frames are mounted together, the frames need to be reinforced.

Installation

  • In the event that several frames are to be fitted next to one another, it is advisable to also fit additional reinforcing
  • Once the frames are fitted, sealant should be applied around the edges to prevent any leakage
  • The frames should be correctly installed; the clips should be fitted on the dirty air side
