MP panel filter

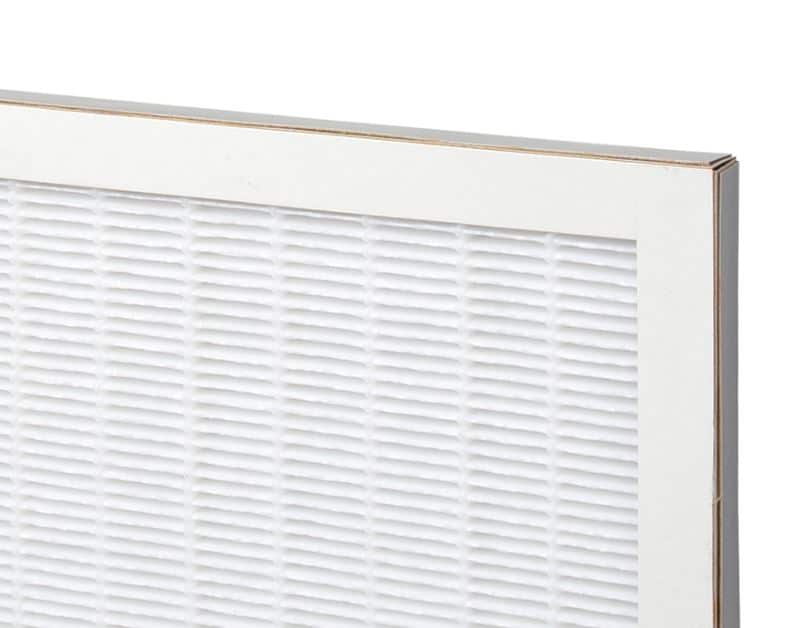

MP Panel filters are pleated filters which are assembled within a moisture-resistant cardboard frame.
The MP Panel filters are ePM10 75%, ePM2,5 55%, ePM1 55% , ePM1 80% in compliance with ISO16890.

  • Frame :  Firm cardboard frame
  • Medium :  Glassfiber
Filter class according to ISO 16890
ePM10, ePM2,5, ePM1
Energy label
E
Maximum final pressure drop
450Pa
home ventilation

HVAC

industry

Industry

Specifications

  • Frame :  Firm cardboard frame
  • Medium :  Glassfiber
  • Maximum temperature :  70°C
  • Maximum relative humidity :  90%

Installation

  • Ensure that the filter is fitted correctly:Suction side – clean air side
  • Filter should be correctly installed: no leaks
  • Gaskets should be completely undamaged
  • Filter should be secured at four points
  • Ensure that the filter medium is not folded double
  • Take care to avoid damaging the filter during installation
  • System should be run in for several hours to achieve the desired result
  • Filter installation records; note the date, type and initial resistance.
