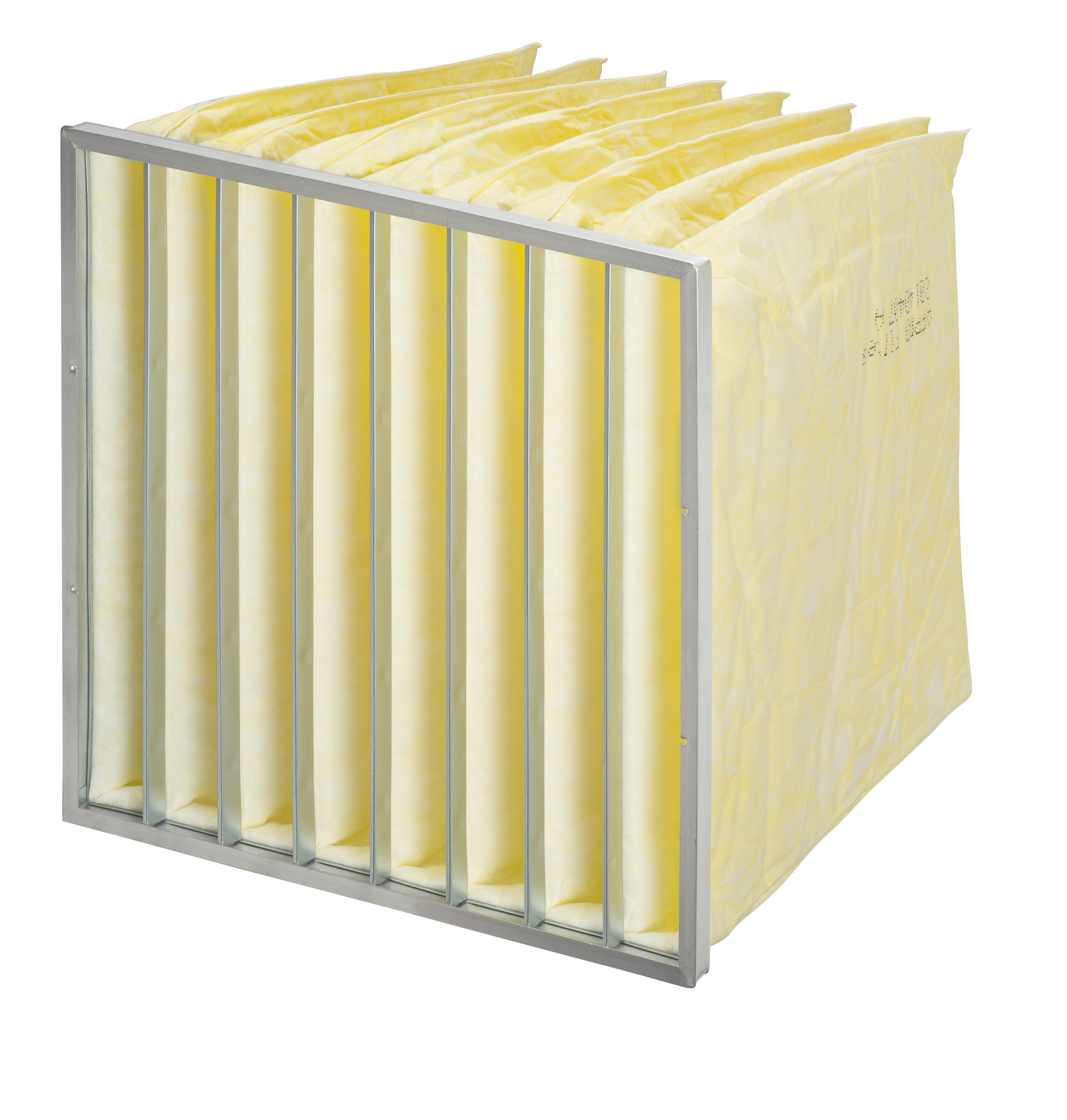

LSB 90 serie bag filter

This product offers our customers a proven, reliable, and competitive solution to meet the comfort needs of general buildings. This product is intended to serve as a second stage of filtration.

Why choose the LSB 90 serie bag filter?

  • Performance: Compliance with VDI 6022 / No fiber shedding (VDI certification).
  • Budget version
  • Certified: ISO 16890.

AFPRO Filters BV participates in the ECP certification programme for Air Filters (FIL). Check the ongoing validity of the certificate: WWW.EUROVENT-CERTIFICATION.COM

Ask for a quoteCall me back
Filter class according to ISO 16860
ePM1 60%
Energy label
E
Maximum final pressure drop
450 PA

HVAC

Specifications

  • Frame : Galvanized steel / aluminium
  • Medium : Synthetic sewing thread / 100% Polypropylene
  • Gasket : Optional continuous poured gasket
  • Maximum temperature : 70°C
  • Maximum relative humidity : 90%​​
  • Filter class according to ISO 16890: ePM1 60%
  • EUROVENT certified

Installation

  • Make sure that the bag filter is fitted correctly : Suction side – clean air side
  • Filter should be correctly installed: no leaks
  • Gaskets should be completely undamaged
  • Filter should be secured at four points
  • Ensure that the filter medium is not folded double
  • Take care to avoid damaging the filter during installation
  • System should be run in for several hours to achieve the desired result
  • Keep filter installation records; note the date, type and initial resistance.

Pressure drop

Advantages

  • Compliance with VDI 6022
  • Eurovent certified
  • Made in Europe
