FP Panel Filter

FP Panel filter is used as a pre-filter for air spray booths, air conditioning systems and industrial systems. This panel filter is a pleated filters which are assembled within a moisture-resistant cardboard frame.

  • Frame: Firm cardboard frame
  • Medium: Synthetic
  • Gasket: Optional Neoprene
Ask for a quoteCall me back
Filter class according to ISO 16890
ISO Coarse 70%
Maximum final pressure drop
250 Pa
home ventilation

HVAC

industry

Industry

Specifications

  • Frame: Firm cardboard frame
  • Medium: Synthetic
  • Gasket: Optional Neoprene
  • Maximum temperature : 70°C
  • Maximum relative humidity : 90%

Installation

  • Ensure that the filter is fitted correctly: Suction side – clean air side
  • Filter should be correctly installed: no leaks
  • Gaskets should be completely undamaged
  • Filter should be secured at four points
  • Ensure that the filter medium is not folded double
  • Take care to avoid damaging the filter during installation
  • System should be run in for several hours to achieve the desired result
  • Filter installation records; note the date, type and initial resistance.
FP panel filter

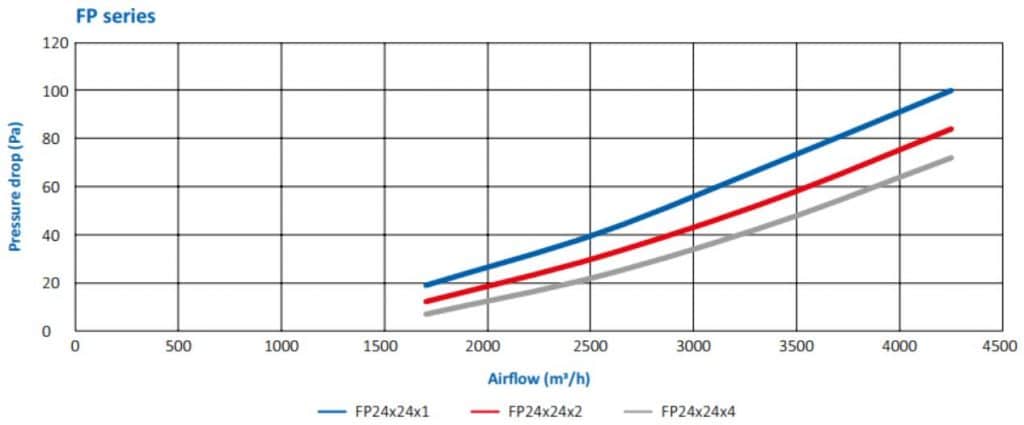

Pressure drop
