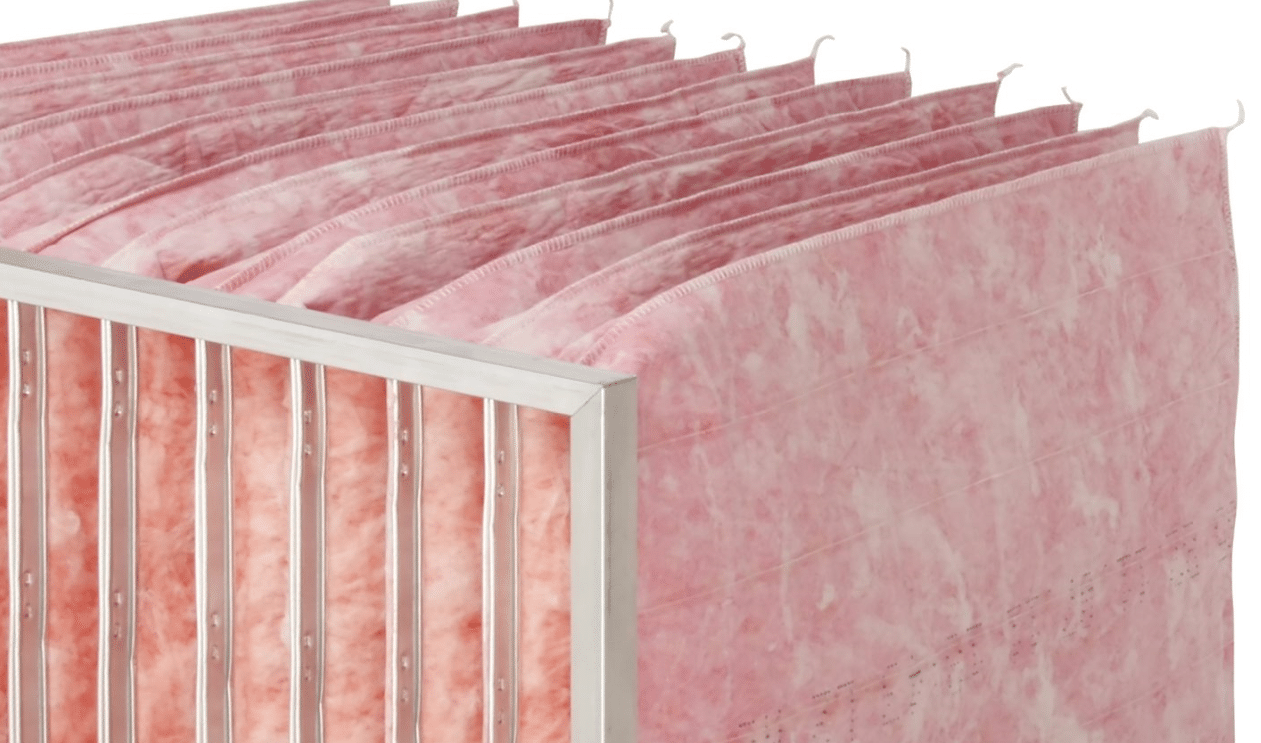

ECO70ES

The ECO70ES ePM1 bag filter is intended to serve as a second-stage filtration solution, complementing the first stage filtration system to ensure optimal indoor air quality. This solution delivers premium second-stage fine filtration with an A-rated energy efficiency, offering a high-performance.

Why choose the ECO70ES filter?

Performance: High filtration efficiency against ePM1 particles.
Sustainability: Low energy consumption, A label.
Certified: ISO 16890.

AFPRO Filters BV participates in the ECP certification programme for Air Filters (FIL). Check the ongoing validity of the certificate: WWW.EUROVENT-CERTIFICATION.COM

Ask for a quote Call me back

Filter class according to ISO 16890

ePM1 50%

Energy label

Premium

second-stage fine filtration

Specifications

Frame: Galvanized steel or aluminum
Medium:Glass fiber / synthetic, High-loft micro glass fiber filtration media with polyester carded web
Energy label: A
Dust Holding Capacity: >=1000g
Initial pressure drop: 65Pa
Filter class according to ISO 16890: ePM1 50%
EUROVENT certified

Installation

Make sure that the filter is installed properly: Suction side – clean air side
Filter should be correctly installed: no leaks
Gaskets should be completely undamaged
Filter should be secured at four points
Make sure that the filter media is not folded double
Be careful not to damage the filter during installation
System should be run in for several hours to achieve the desired result
Keep a record of filter installation; note date, type, and initial resistance.
