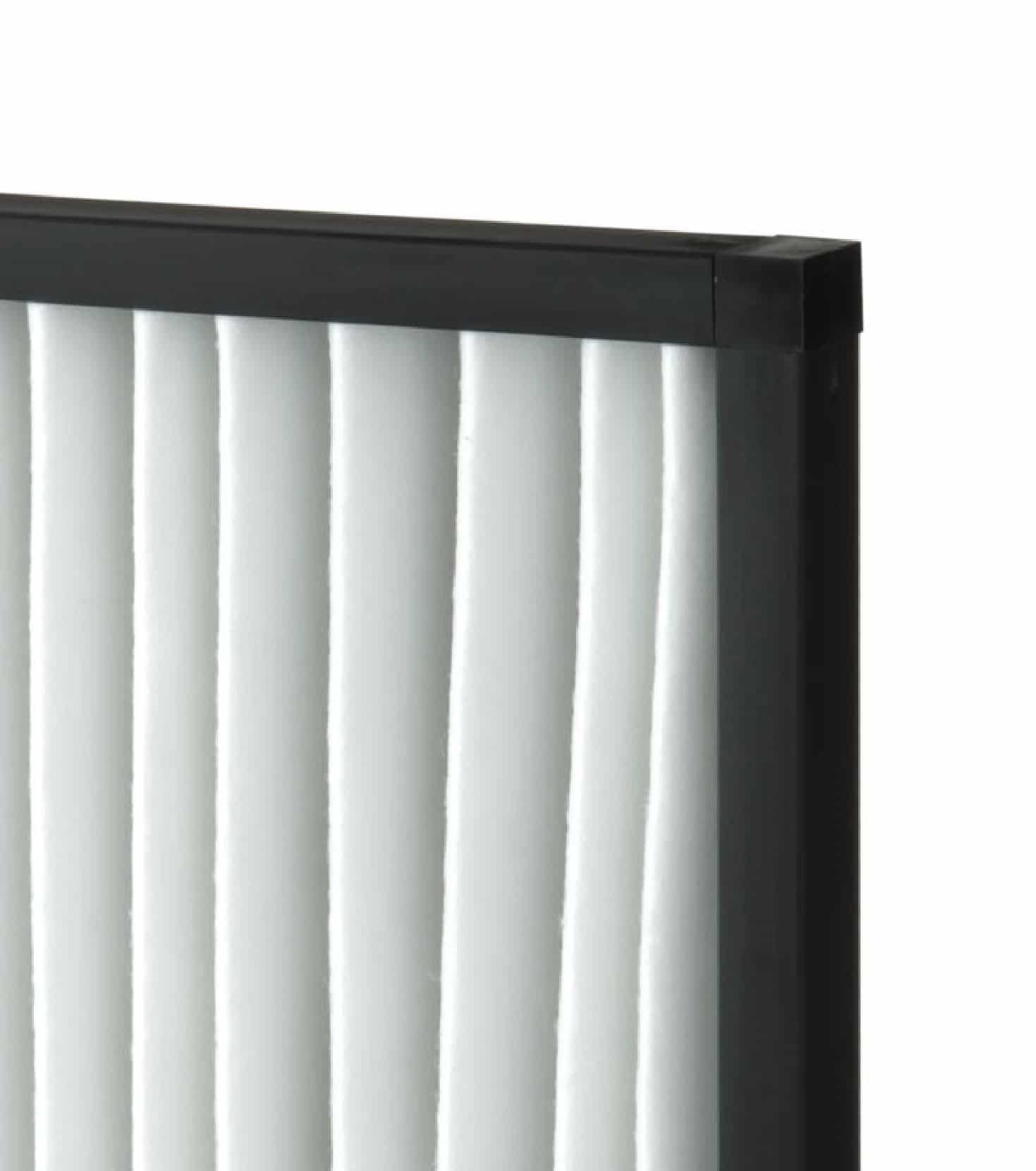

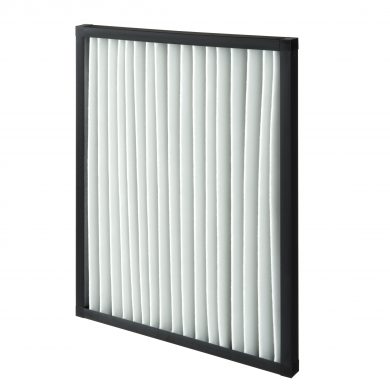

AQUA panel filter

AQUA Panel filter is a pleated filters which are assembled in a plastic frame. Its unique selfsupporting filter medium protects the last filtration step from humidity.

  • Frame: Plastic
  • Medium: Synthetic – PET, hydrophobe
  • Gasket: Optional, Continuous poured gasket
Filter class according to ISO 16890
ISO Coarse 70%
Medium
Hydrophobe
Maximum final pressure drop
250Pa

Specifications

  • Frame: Plastic
  • Medium: Synthetic – PET, hydrophobe
  • Gasket: Optional, Continuous poured gasket
  • Maximum temperature: 70°C
  • Maximum relative humidity: 100%

Installation

  • Ensure that the filter is fitted correctly: Suction side – clean air side
  • Filter should be correctly installed: no leaks
  • Gaskets should be completely undamaged
  • Filter should be secured at four points
  • Ensure that the filter medium is not folded double
  • Take care to avoid damaging the filter during installation
  • System should be run in for several hours to achieve the desired result
  • Filter installation records; note the date, type and initial resistance.

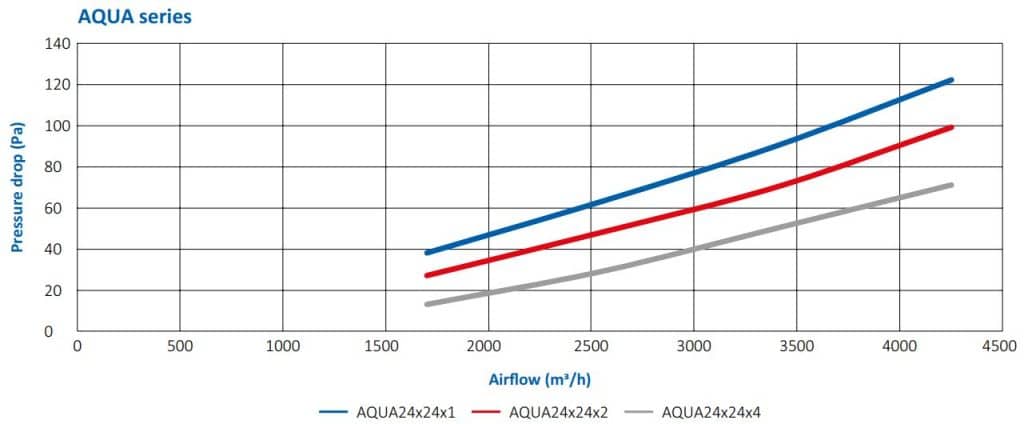

Pressure drop aqua

Pressure drop
