APKK Panel Filter

APKK Panel Filter

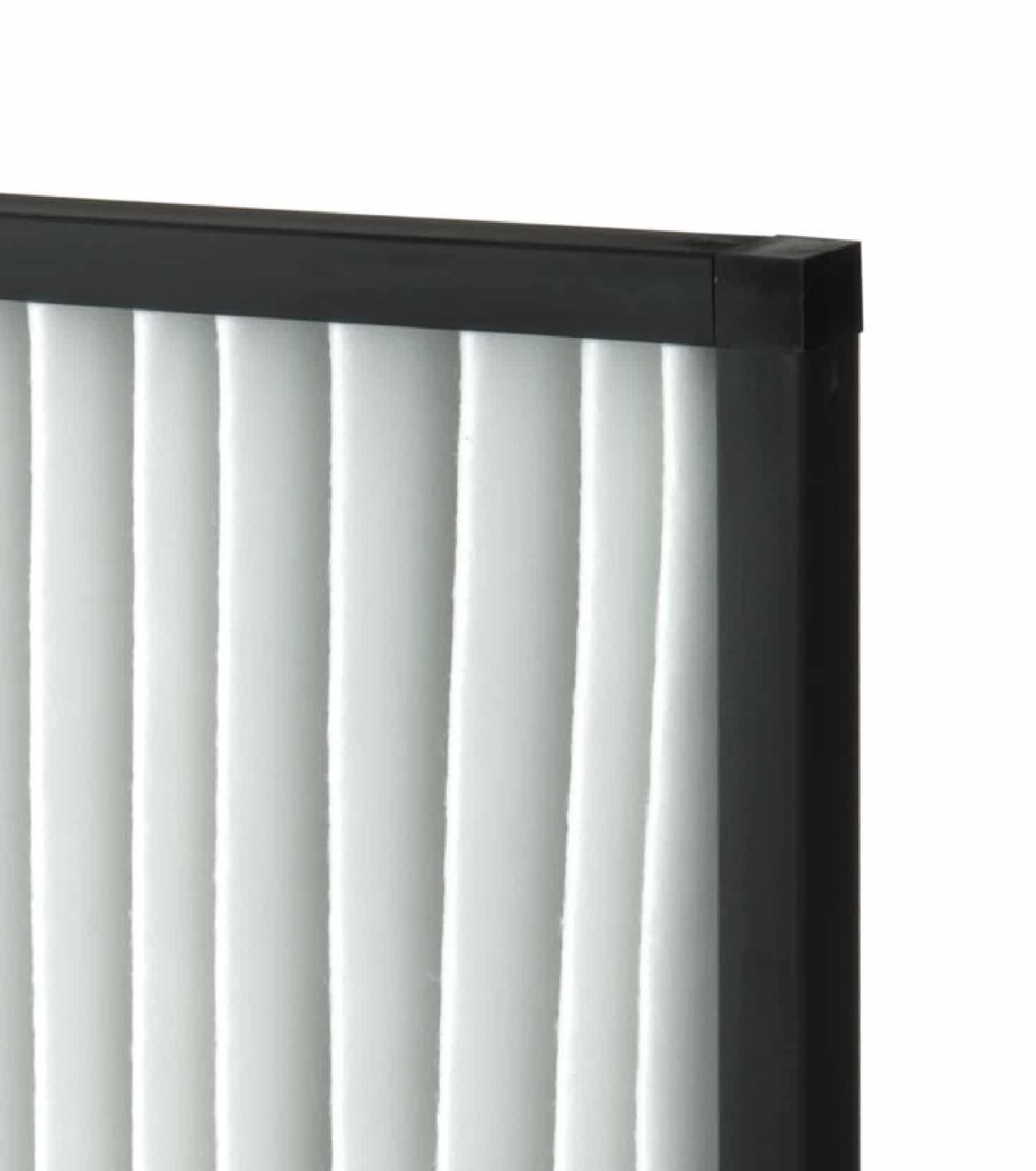

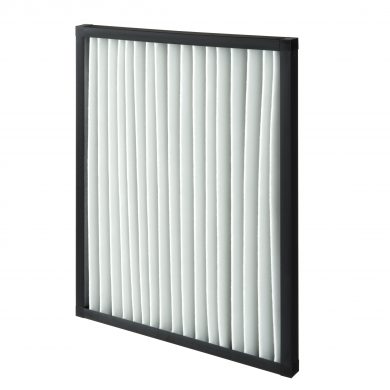

APKK Panel filter is a pleated filters which are assembled in a plastic frame. Its unique selfsupporting filter medium protects the last filtration step from humidity.

  • Frame: Plastic
  • Medium: Synthetic
  • Gasket: Continuous poured gasket
Ask for a quoteCall me back
Filter class according to ISO 16890
ISO Coarse 70%
Maximum final
presssure drop
250Pa
HVAC

HVAC

industry

Industry

Specifications

  • Frame: Plastic
  • Medium: Synthetic
  • Gasket: Continuous poured gasket
  • Maximum temperature: 80°C
  • Maximum relative humidity: 90%

Installation

  • Ensure that the filter is fitted correctly: Suction side – clean air side
  • Filter should be correctly installed: no leaks
  • Gaskets should be completely undamaged
  • Filter should be secured at four points
  • Ensure that the filter medium is not folded double
  • Take care to avoid damaging the filter during installation
  • System should be run in for several hours to achieve the desired result
  • Filter installation records; note the date, type and initial resistance.
Pressure drop apkk panel filter
