HQ AK bag filter series

The HQ bag filter impregnated with activated carbon combines particle and molecular filtration, it is characterized by its glass fiber nonwoven media laminated with activated carbon. It is used for deodorization and gas capture.

  • Frame : Galvanized steel/Aluminum
  • Medium :Glass fiber nonwoven laminate with activated carbon
  • Gasket : Optional continuous poured gasket

Ask for a quoteCall me back
Filterclass according to ISO 16890
ePM1
Media structure
Glass fiber with activated carbon layer
Filtration solution
Molecular - Particulate

HVAC

Specifications

  • Type of Product : Activated carbon bag filter
  • Filter Frame : Galvanized steel/Aluminium
  • Medium : Glass fiber nonwoven laminate with activated carbon
  • Gasket : Optional, continuous poured gasket
  • Filter class according to ISO 16890: ePM1 60% (HQ85 AK), ePM1 85% (HQ98 AK)
  • Maximum final pressure drop: 450Pa
  • Maximum temperature: 70°C
  • Maximum relative humidity: 90%

Installation

  • Ensure that the filter is fitted correctly: Suction side – clean air side
  • Filter should be correctly installed: no leaks
  • Gaskets should be completely undamaged
  • Filter should be secured at four points
  • Ensure that the filter medium is not folded double
  • Take care to avoid damaging the filter during installation
  • System should be run in for several hours to achieve the desired result
  • Filter installation records; note the date, type and initial resistance

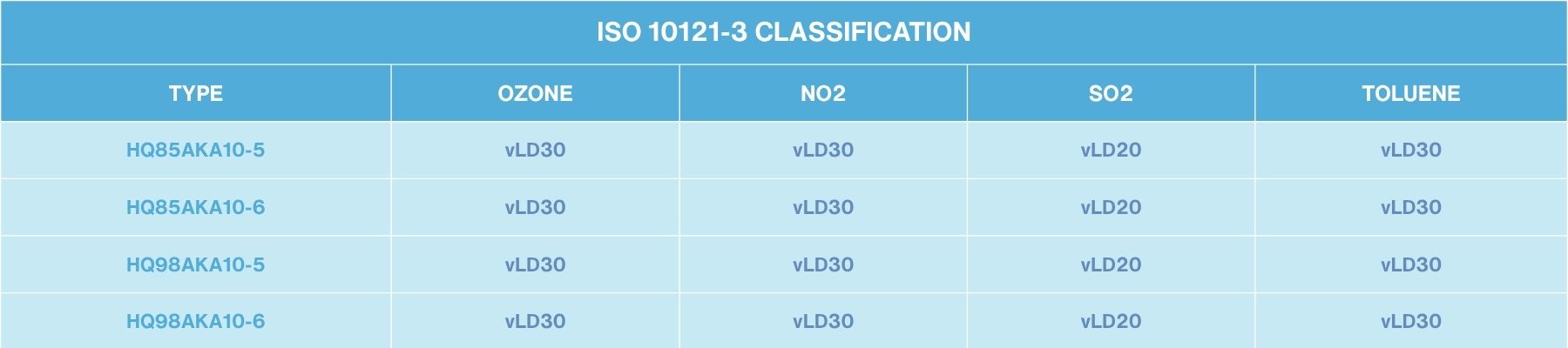

ISO 10121-3 Classification
