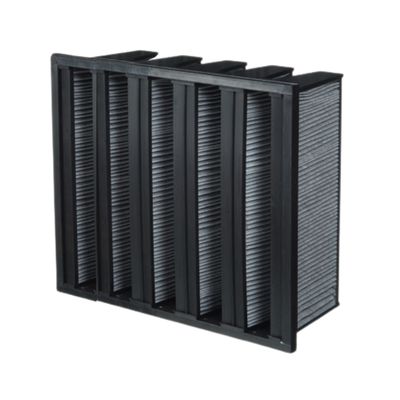

HPQ AK Compact Filter

HPQ AK compact filter is a filter used in air treatment cabinets, air conditioning systems, industrial systems and as a pre-filter in cleanrooms. Compact or HPQ filters are mini-pleat filters, which are assembled inside a polystyrene frame. This type of air filters is resistant to temperatures of up to 70°C.

  • Frame : Plastic
  • Medium : Medium consisting of synthetic medium combined with activated carbon
  • Gasket : Optional continuous poured gasket
Filterclass according to ISO 16890
ISO Coarse, ePM10
synthetic medium combined with
activated carbon
Maximum final presssure drop
350 Pa
home ventilation

HVAC

industry

Industry

Specifications

  • Frame : Plastic
  • Medium : Medium consisting of synthetic medium combined with activated carbon
  • Gasket : Optional continuous poured gasket
  • Maximum temperature : 65°C
  • Maximum relative humidity : 90%

Installation

  • Ensure that the filter is fitted correctly: Suction side – clean air side
  • Filter should be correctly installed: no leaks
  • Gaskets should be completely undamaged
  • Filter should be secured at four points
  • Ensure that the filter medium is not folded double
  • Take care to avoid damaging the filter during installation
  • System should be run in for several hours to achieve the desired result
  • Filter installation records; note the date, type and initial resistance
