Compact filters for gas turbines

Compact filters are the final filters in the air intake systems of gas turbines. Their unique design maximizes turbine performance, minimizes fouling and reduces the need for maintenance.

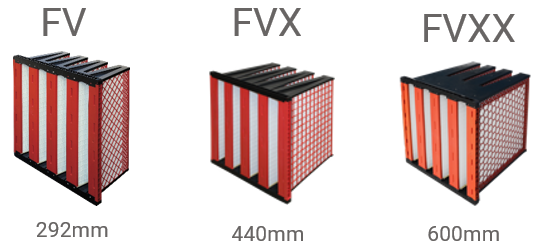

Comes in three depths

This range is a true economic solution, because the larger the filter, the longer the service life and the lower the pressure drop, which means less maintenance and a reduction in costs.

The purpose of these compact filters

  • Extend the service life of the filter and installation.
  • Increase operational safety.
  • Protect against coarse dust and airborne salt crystals.

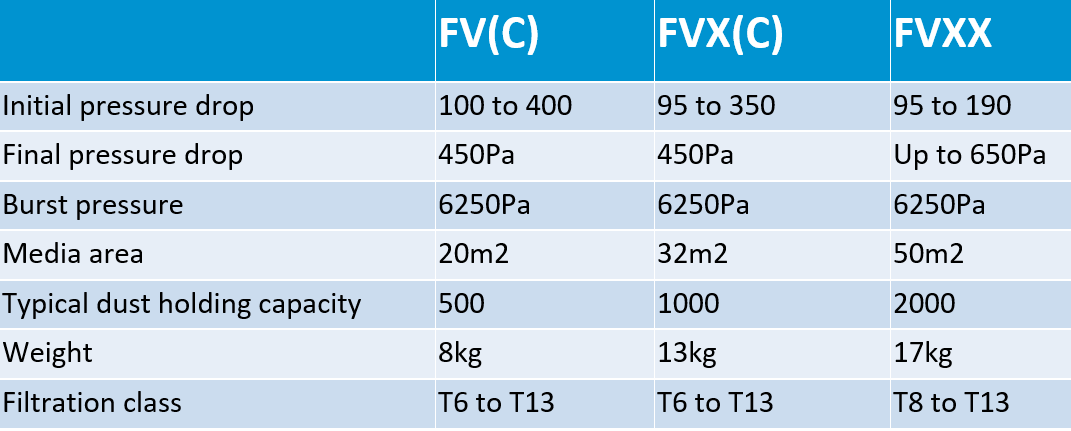

Burst pressure
6250 Pa

Gas turbines


  • Burst pressure: 6250 Pa
  • Filter class according to ISO 29461-1: T6-T13 (ePM10 to ePM1)
  • Media: waterproof, micro fiberglass
  • Media area: from 20 to 50 m2

compact filter for gas turbines


  • High dust holding capacity: extends turbine life and reduces maintenance costs
  • Low pressure drop
  • High robustness with super strong ABS frame
  • Products produced by Faist and approved by gas turbine manufacturers

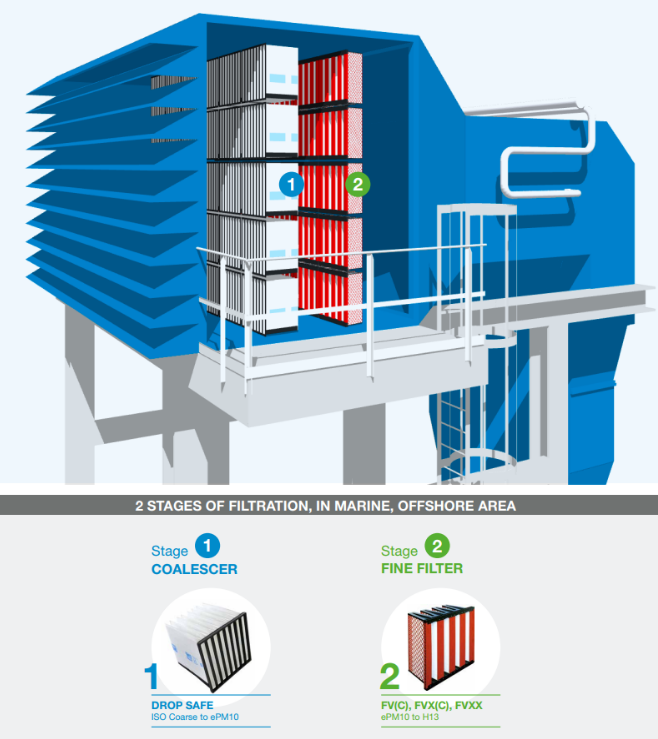

Offshore and land based systems solutions

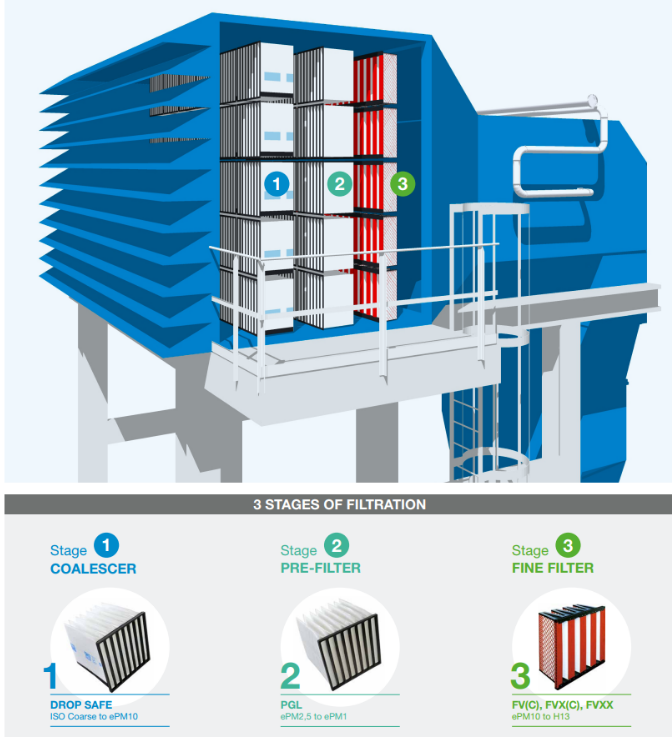

Static air intel system solution
