Fancoil DF panel filter

Fancoil DF panel filter

Fancoil DF panel filter and panel filters are pleated filters which are assembled with a wire frame.

  • Frame: Wire frime
  • Medium: Synthetic
Ask for a quoteCall me back
Filter class according to ISO 16890
ISO Coarse 30%
Filter class according to ISO 16890
ISO Coarse 50%
Maximum final pressure drop
250Pa
home ventilation

Fan coil units (Home Ventialtion)

hotel

Hotel

Specifications

  • Frame: Wire frime
  • Medium: Synthetic
  • Maximum temperature : 70°C
  • Maximum relative humidity : 90%

Installation

  • Ensure that the filter is fitted correctly:
  • Suction side – clean air side
  • Filter should be correctly installed: no leaks
  • Gaskets should be completely undamaged
  • Filter should be secured at four points
  • Ensure that the filter medium is not folded double
  • Take care to avoid damaging the filter during installation
  • System should be run in for several hours to achieve the desired result
  • Filter installation records; note the date, type and initial resistance.

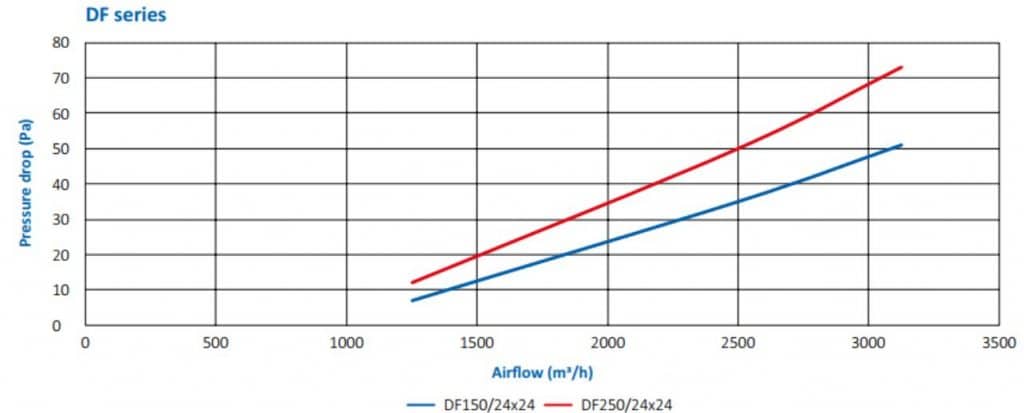

Pressure drop DF

Pressure drop
