CP Panel filter

CP Panel Filter

CP Panel Filter and the panel filters are pleated filters that are assembled within a plastic frame.

  • Frame: Plastic
  • Medium: Glass fiber paper
  • Gasket: Continuously poured gasket

eurovent

AFPRO Filters BV participates in the ECP programme for Air filters (FIL). Check ongoing validity of certificate: www.eurovent-certification.com

Ask for a quoteCall me back
Filter class according to ISO 16890
ePM10 75%, ePM2,5 55%, ePM1 55%, ePM1 70%, ePM1 80%
Energie label
C, E
Maximum final presssure drop
450Pa
HVAC

HVAC

industry

Industry

Specifications

  • Frame: Plastic
  • Medium: Glass fiber paper
  • Gasket: Continuous poured gasket
  • Maximum temperature : 65°C
  • Maximum relative humidity: 90%
  • Filtration class: ePM10 75%, ePM2,5 55%, ePM1 55%, ePM1 70%, ePM1 80%

Installation

  • Ensure that the filter is fitted correctly:
  • Suction side – clean air side
  • Filter should be correctly installed: no leaks
  • Gaskets should be completely undamaged
  • Filter should be secured at four points
  • Ensure that the filter medium is not folded double
  • Take care to avoid damaging the filter during installation
  • System should be run in for several hours to achieve the desired result
  • Filter installation records; note the date, type and initial resistance.

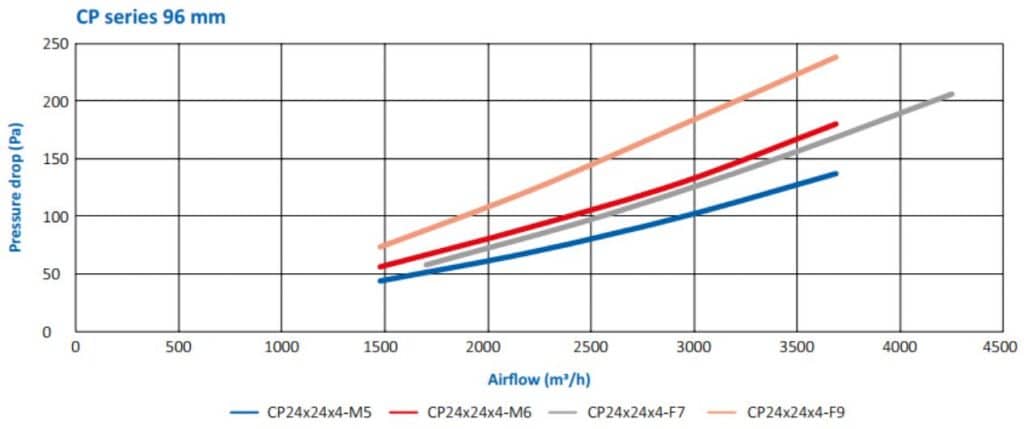

Pressure drop
