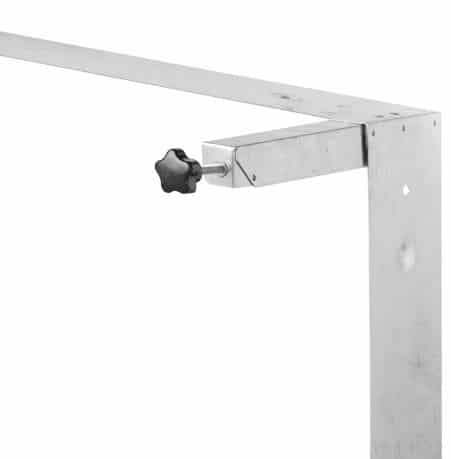

HF Hepa holding frame

HF Hepa holding frame have standard dimensions and are a good replacement for the used holding frames removed during the renovation of air treatment cabinets.

  • Frame : Galvanized steel or stainless steel (RVS)
  • Maximum temperature : 70°C
cleanroom

Cleanrooms

Hopital clinique

Hospitals

Gas turbine

Specifications

  • Frame : Galvanized steel or stainless steel 304 or 316 (RVS). Epoxy coating can be applied.
  • Maximum temperature : 70°C
  • Comments : Assembly tools for filters with a depth of 292 mm are included standard. Assembly tools for filters with a depth of 60-150 mm can be delivered on request

Installation

  • In the event that several frames are to be fitted next to one another, it is advisable to also fit additional reinforcing
  • Once the frames are fitted, sealant should be applied around the edges to prevent any leakage
  • The frames should be correctly installed; the clips should be fitted on the dirty air side.

Advantages

  • High quality steel is used in manufacturing the frames to ensure ample rigidity.
  • The construction design pays consideration to optimum frame stability and ease of installation.
